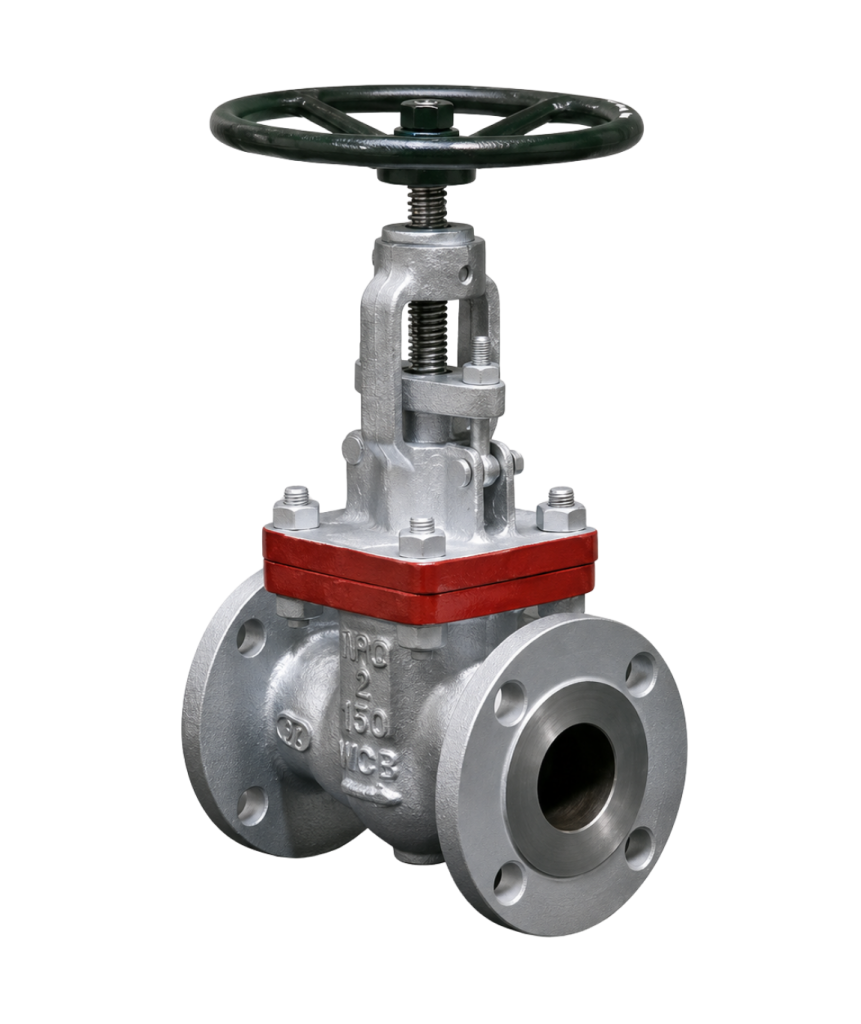

Globe Valve Bolted Bonnet

Leading Manufacturer of Globe Valves in India

Globe Valves manufacturer from IPC are ideally unidirectional. These can be utilized for isolation as well as for flow control. The flow characteristics of a Globe Valve are easy to control hence flow control can be achieved at any open position. This makes the design suitable for throttling application. Globe valves have superior strength and long cycle life. Pillar yoke construction provides easy access to bonnet & packing rings for maintenance. All valves are manufactured in accordance with the latest industry standards.
IPC offer wide range of sizes in globe valve right from 1/2” to 16” (DN- 50 to DN -400) and pressure rating ranges from ASME class 150 through 4500. Higher pressure rating and bigger sizes can also be provided.

Designed for trouble free and consistent operation

Manufacturing with advanced processes for best results and longevity

Superior strength due to Single piece forged Stem

Automatically adjusts the slight misalignments caused by pipeline deflections & thermal deformation

pressure rating ASME class 150 through 4500

Sizes - 1/2" to 16" (DN-50 to DN-400)

MFG standards - BS 1873 / ASME B16.34 / public API623

Flange details - std as per ASME B16.5

Others as per BS, AWWA, EN, DIN, etc

End to end dimensions - as per ASME B16.10

Testing standards - API 598 / BS EN 12266-part 1

Butt-weld end details - as per ASME B16.25

Flanges: Standard as per B16.5 and others as per BS, AWWA, EN, DIN Etc

Raised face with serrations (125-250 AARH) – Other options available

Stuffing box inner surface with very smooth finish for superior gland sealing

Various options in trim available upon request

In Globe Valves Integral seat ensures proper seating of plug as well as sealing

Certifications

Valves Approvals

Downloads

Frequently Asked Questions

What is a bolted bonnet globe valve?

A bolted bonnet globe valve is a flow-control valve where the bonnet is secured to the body using bolts.

What is a globe valve mainly used for?

Globe valves are used when flow regulation matters. They’re ideal for throttling, frequent operation, and precise control rather than just simple on-off service.

Why choose a bolted bonnet design?

The bolted bonnet design allows easy inspection and maintenance without replacing the entire valve. It also provides a strong, pressure-resistant joint, making it suitable for demanding industrial applications.

Where are IPC bolted bonnet globe valves commonly used?

These valves are widely used in oil & gas, power plants, refineries, chemical processing, water systems, and steam applications anywhere controlled flow and reliability are critical.

What materials are available for IPC globe valves?

IPC globe valves are available in materials like carbon steel, stainless steel, and alloy steel, with trims designed as per industry standards to handle different media and operating conditions.

Are these globe valves suitable for high-pressure and high-temperature service?

Yes. IPC bolted bonnet globe valves are designed to perform reliably under high pressure and elevated temperatures, making them suitable for steam lines and critical process systems.
