Rack and Pinon Actuator

Reliable, Compact, and Safe Valve Regulating Automation

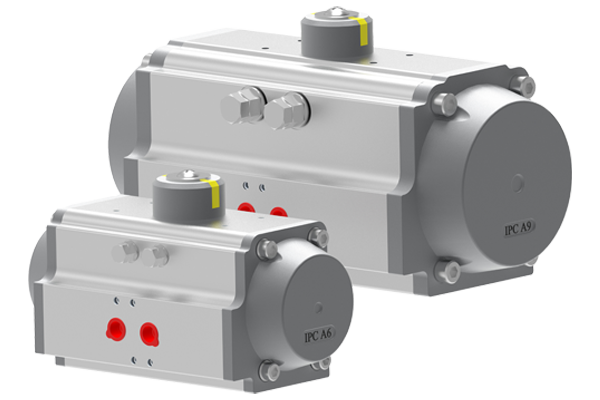

The IPC Rack & Pinion pneumatic actuators are designed for use in quarter-turn applications and are ideal for the on/off or continuous operation of plug, butterfly and ball valves, as well as dampers and other 90° turn devices. Engineered for reliability and built to last, our actuators’ precision design and quality provide long and safe performance for valve control.

Benefits

Equipped with Seals and low friction bearing material for low maintenance and trouble-free cycle life.
Multiple drive shaft options to suit valve requirements and direct mounting.
Blowout resistant shaft design for improved safety.

Specifications

Double-Acting: 354.9 to 33446 lbf.in (40.1 to 3778.9 Nm) at 80 psig (5.5 barg)
Spring Return: 77 to 14679.8 lbf.in (8.7 to 1658.6 Nm) spring end torque at maximum spring set
Double-Acting: 2.9 to 116 psig (0.2 to 8.0 barg)
Spring-Return: 43.5 to 116 psig (3 to 8.0 barg)

Features

Compact design allows extensive direct mounting orientations.
Compliance with international interface standards ISO 5211/DIN 3337 and VDI/VDE 3845 (NAMUR).
Pre-compressed encapsulated springs allow for easier assembly/disassembly and
provide an extra layer of safety protection against spring energy release.
