Specialized valves dispatch

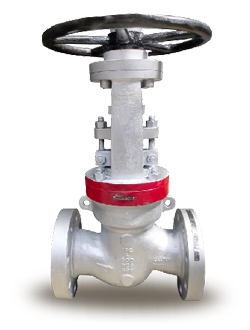

MANNUAL GLOBE VALVE
SIZE
100 mm
CERTIFICATION
IBR, EN10204 Type 3.1
PRESSURE RATING
#900
DESIGN STD
BS1873
Technical Specifications
Valve Make & Series
IPC
Type
GLOBE VALVE
Construction
OS & Y, Pressure Seal Bonnet
Face to Face
ANSI B16.10
End Connection
Flanged to ANSI B 16.5 RF Serrated
Testing Std.
API 598
Operating Temp
Max 595 °C & Min -29 °C
Leakage Class
API 598
Flow Direction
BI-Directional
Trim
Trim 5
Body MOC
ASTM A217 Gr. WC9
Body Seat
ASTM A182 Gr. F6a + ST-6
Coating & Paintings
HR Alluminium Paint
Operating Pressure
158 Kg/cm2 Max
