PULSE
Specialized valves dispatch

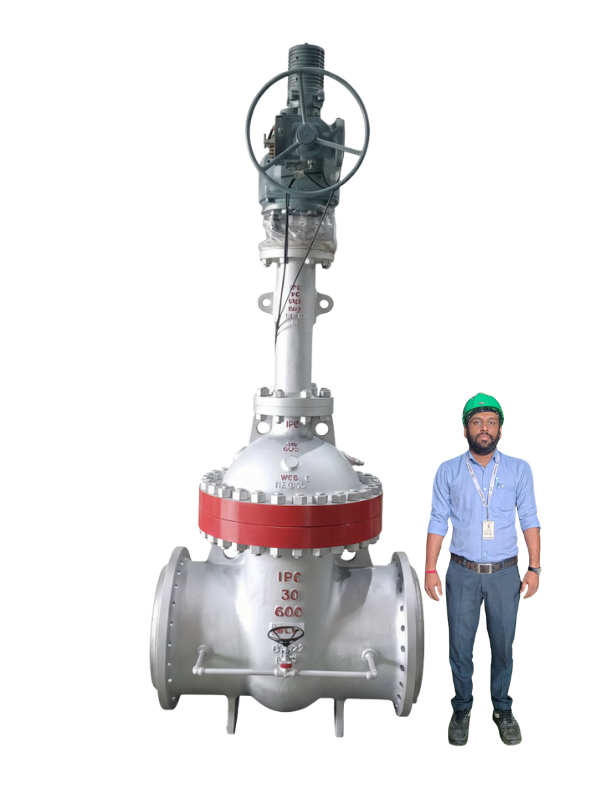

Eletrically Actuated On-Off Gate Valve
SIZE
(30")
750 MM
Leakage Class & Testing
API 598
PRESSURE RATING
Class 600
Design Standard
API 600 - 14th Edition
Technical Specifications
VALVE Make, TYPE & Series
IPC Gate Valve - 701
Construction
OS & Y Type Bolted Bonnet
End Connection Standard
ASME B16.25
End Connection
Butt weld End Sch 80
Face to Face
ASME B 16.10
Operation
Electric Actuator
Flow Direction
uni-Directional
Trim
Trim 5
Body MOC
ASTM A217Gr.WC6
Disc/Wedge MOC
ASTM A217Gr.WC6 + ST6 FACING
Seat MOC
ASTM A 182 Gr.F6a + ST6 FACING
Stem MOC
ASTM A276 TP.410
Electric Supply
440 VAC 3 phase 50Hzs
Function (Duty)
ON-OFF
Fail Position
Stayput
Valve Paint
heat resistant aluminium
