PULSE
Specialized valves dispatch

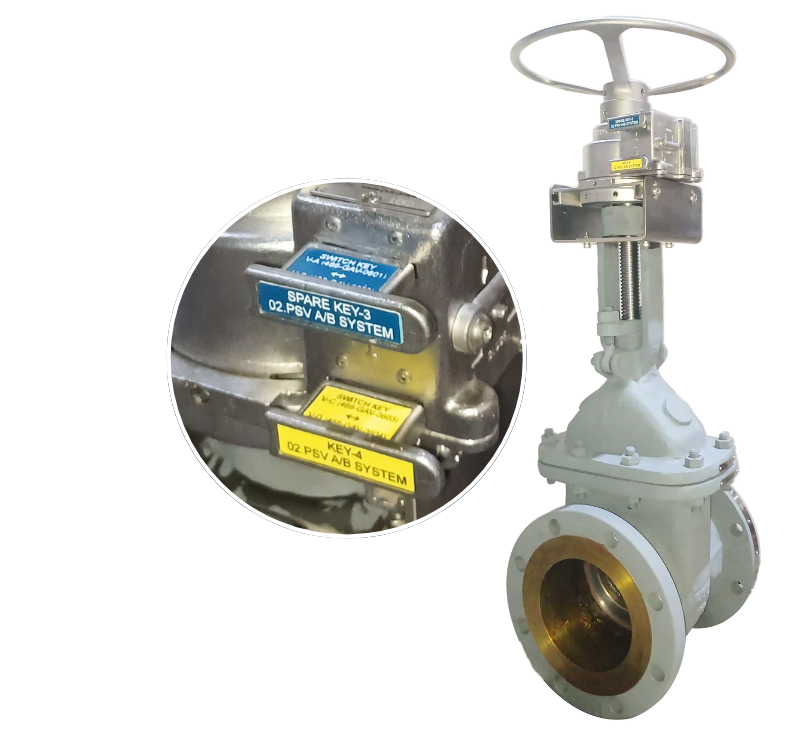

Gate Valve Manually Operated with Interlock Keys System for Safety
SIZE
(6") 150 MM
PRESSURE RATING
Class 150
TESTING STD.
API 598
Paint
Heat Resistant Aluminim
Technical Specifications
VALVE Make, TYPE & Series
IPC Gate Valve - 702
Construction
OS & Y Type
DESIGN STD
API 600
End Connection
ASME B 16.5, FERF
Face to Face
ASME B 16.10
Operation
Handwheel with MECHNICAL Interlock Keys
Flow Direction
Bi-Directional
Trim No.
Trim 8
Body MOC
ASTM A216
Gr. WCB
Disc MOC
ASTM A216 Gr. WCB + 13 % Cr
Seat MOC
ASTM A516 Gr 70 + ST6
Stem / Hinge Pin MOC
ASTM A276 TP 410
