PULSE
Specialized valves dispatch

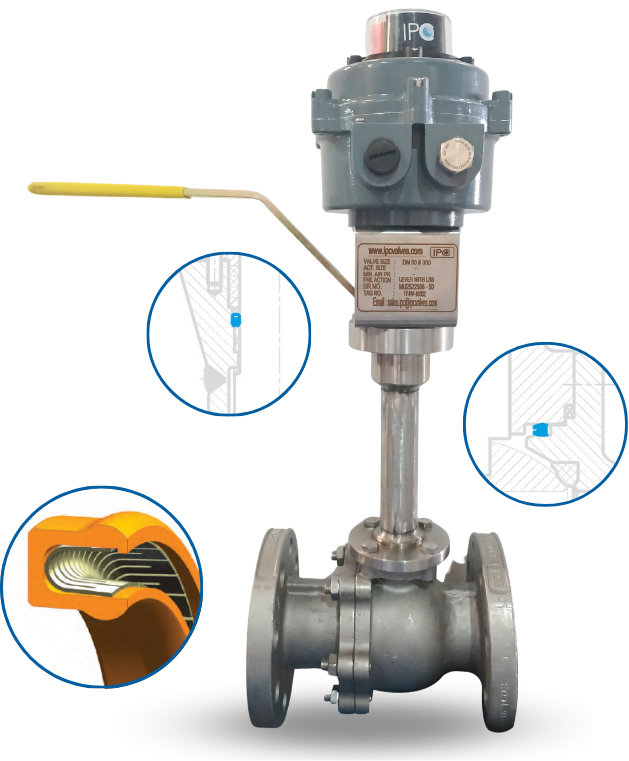

LIP SEAL Design Extended Bonnet Ball Valve with Limit Switch Box
SIZE
(2") 50 mm
Bonnet Extention
150mm
PRESSURE RATING
Class 300
TESTING STD.
API 598 - 11 Edition
Technical Specifications
VALVE Make, TYPE & Series
IPC Ball Valve -402
TYPE
Floating
DESIGN STD
ISO 17292
End Connection
ASME B 16.5 Flanged RF
Face to Face
ASME B 16.10
Operation
Manual Hand Lever
Flow Direction
Bi-Directional
STEM PACKING
Graphite + Lip Seal
Body MOC
ASTM A351 Gr. CF3
BALL MOC
ASTM A351 Gr. CF3 /A276 TP.304L
Seat MOC
RPTFE
Stem MOC
ASTM A182 Gr. F51
LIMIT SWITCH BOX TYPE & SERIES
Flame proof FPB Series
NUMBER OF SWITCHES
TWO
CERTIFICATION FOR SWITCHES
ATEX
Special Testing
Fugitive Emission Class BH
