PULSE
Specialized valves dispatch

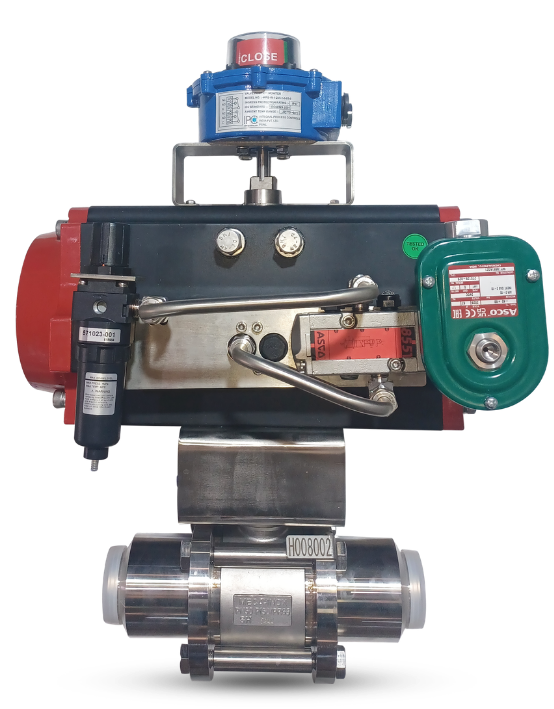

Pneumatically Operated Ball Valve
SIZE
(2") 50NB
Leakage Class
VI
PRESSURE RATING
PN40
TESTING STD.
API 598 - 11 Edition
Technical Specifications
VALVE MAKE & SERIES
IPC 551 Series, Y Type Flush Tank Bottom Valve
CONSTRUCTION
Three Piece Design
SOLENOID VALVE
3/2 way Flameproof Solenoid 24VDC
End Connection
Butt Weld with 100mm Nipple extension
Fail Position
Close
Actuator
Pneumatic Spring Return Rack & Pinion
Air Supply
3 Kg / cm2 (g)
Limit Switch Box
IPC Make 2 SPDT Weather Proof
PLUG MOC
SS316L
SEAT MOC
SS316L
Stem MOC
PTFE
Stem MOC
SS316L
