PULSE
Specialized valves dispatch

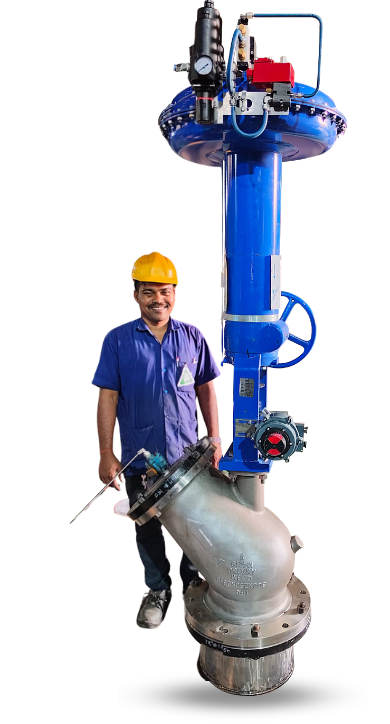

Y Type Flush Tank Bottom Valve
SIZE
DN 300 x DN 250
END CONNECTIONS
Flanged End
PRESSURE RATING
Class 150
VALVE ACTION TIME
Less than 5 Seconds
Technical Specifications
VALVE MAKE & SERIES
IPC 551 Series, Y Type Flush Tank Bottom Valve
CONSTRUCTION
Y Type Flush Disc Rising in Tank
SOLENOID VALVE
3/2 way Flameproof Solenoid 24VDC
LIMIT SWITCH BOX
Flame proof with Two Proximity Sensors
ACTUATOR MODEL
IPC 300T Multi spring Diaphram actuator
Operation
Pneumatic Diaphargm type spring return Actuator
Air Supply
3.5 kg/cm2(g)
Flow Direction
Uni-Directional
Body MOC
ASTM A351 Gr. CF3M
PLUG MOC
SS316L + Peek Encaps
SEAT MOC
SS316L
Stem MOC
SS316L
