Y-Type Flush Bottom Valves

Y-type flush bottom valves for Perfect draining

Y-type flush bottom valves redefine tank draining with unmatched efficiency. Featuring a unique Y-shaped design, these valves ensure optimal flow control and efficient draining of tanks and vessels. The bottom-mounted configuration allows for complete emptying, leaving no residue behind. These valves find applications in diverse industries such as chemical processing, oil and gas, and water treatment. With their robust construction and reliable sealing, our Y-type flush bottom valves provide a reliable solution for demanding draining requirements.

Efficient and complete draining of tanks and vessels

Y-shaped design allows for optimal flow control, minimizing pressure drops

Prevents any leakage or seepage during the draining process

Easy maintenance, allowing for quick access during inspection, cleaning, or repairs

Minimizes the risk of residual chemicals or contaminants

General design & mfg Manufacturers STD. / ASME B-16.34

Valve inspection and testing API 598

Flanged End ASME B 16.5

Valve Body ASTM A216 GR.WCB / ASTM A351GR.CF8M / ASTM A351 GR.CF3M / ASTM A351 GR.CF8

Disk / Seat / ASTM 316

Size range Inlet Flange 1.1/2" to 6" & Outlet Flange 1" to 4"

Pressure rating Class 150 / 300

The outlet range is 45 Deg inclined to the axis of the valve

Inline maintenance under the tank

These valves are available with actuators and manual operated

These valves are compact, lightweight design and ideal for

These valves are available in two types of constructions, one the plug opens into the vessels & second the plug opens into the valve body

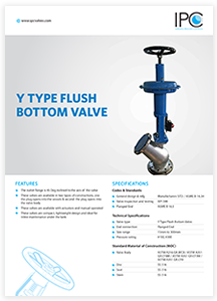

Downloads

Frequently Asked Questions

What is a Y-Type Flush Bottom Valve?

Imagine a valve built specifically to get the very last drop out of a tank. It’s a drain valve with a unique Y-shaped body that mounts directly to the bottom of a vessel. This smart design guides the flow for optimal drainage, ensuring you can completely empty the contents without leaving leftover residue stuck in the valve itself.

How is the "Y-Type" different from other flush bottom valves?

The key is in the shape! The angled, Y-shaped body isn’t just for looks. it minimizes flow resistance and creates a smooth path for the material to exit. This often makes draining more efficient and can be particularly helpful for thicker or more viscous liquids that might get stuck in sharper corners.

What are the main benefits of using this valve?

The biggest benefits are complete emptying and reliable sealing. By leaving no residue, you prevent product waste, make cleaning between batches easier, and reduce the risk of contamination. The robust construction and dependable seal also give you peace of mind against leaks, even in demanding applications.

What industries use Y-Type Flush Bottom Valves?

They are perfect for any industry where efficient, complete draining is important. You’ll commonly find them in chemical processing, oil and gas, water treatment, food & beverage, and pharmaceutical plants anywhere tanks, reactors, or mixing vessels need to be fully emptied.

How do I know if this is the right drain valve for my tank?

If your priority is maximizing yield and ensuring a vessel is completely empty for cleaning or product changeover, then a Y-Type design is an excellent choice. For specific guidance on size, pressure rating, or material compatibility, our engineering team can help you select the perfect fit.

Where can I learn more about IPC's specific design?

You can find more details on our dedicated product page for Y-Type Flush Bottom Valves. For application-specific questions or to discuss your project needs, please reach out to our experts at Enquiry@ipcvalves.com.
